UL101
ULTRASOUND DETECTOR
CTRL UL101
The CTRL UL101 detects and converts ultrasound produced by mechanical, pneumatic, hydraulic, and electrical systems. Changes in the amplitude and characteristics of the ultrasound are easily detected in noisy plant environments. Leaks are easily pinpointed. Equipment problems are diagnosed even earlier than other technologies such as vibration, infrared inspection, or oil analysis.
Benefits of UL101
Ease-of-use
Simply adjust the sensitivity on the UL101 to pinpoint the sound; scan areas from up to 300 feet away with the PowerBeam 300 parabolic accessory.
Directionality
Ultrasound travels in linear paths and doesn't tend to travel around corners or reflect. Using CTRL’s acoustic ultrasound listening products, leaks are not easily masked.
Sensitivity
The UL101 is the most sensitive ultrasound detector on the market. Find leaks below 2 psi. Diagnose slow speed bearings below 10 rpms.
Costs
CTRL’s UL101 products are priced competitively compared to industry leaders, require less training, and are faster to use.
Applications
Key Features
-
Fixed Frequency
-
High Sensitivity to all turbulent flow air, gas, or vacuum leaks
-
Easily adjustable sensitivity and gain
-
Lightweight, one-handed operation
-
Converts ultrasound to easily recognizable audible sounds
-
Standard 9-Volt Battery means no waiting to recharge
Intrinsically Safe
ANSI /UL 91 3-88, for DIVISION 1, CLASS I, Groups A, B, C and D, CLASS II, Groups E, F, G and CLASS III
It also complies with DIVISION 2, CLASS I, Groups A, B, C and D, CLASS II , Groups F, G, and CLASS III
Technical Specifications
Receiver / Transmitter Dimensions
8.75” x 1.26” x 1.26” (222 x 32 x 32 mm)
4.125" x 1.26" x 1.26" (105 x 32 x 32 mm) Receiver / Transmitter Weight
11.6 oz (330 g)
6.2 oz (175 g)
Kit Shipping Dimensions
17" x 8" x 14" (43 x 20 x 35 cm)
Kit Shipping Weight
10 lbs (4.5 kg)
Housing
Extruded Aluminum, wall thickness .09" (2.3 mm)
Battery
9-Volt Alkaline (> 45 continuous hours use)
Distance of Reception
Up to 150 feet (45 m)
Sensitivity Threshold
Minimum Intensity: 10-12 W/m2 (0 dB SPL)
Minimum Ultrasonic Pressure: 2.0 x 10-5 PA @ 40 kHz
Frequency Bandwidth
1.8 - 2.2 kHz @ level 0.7 (or -3 dB SPL)
Working Resonance Frequency
40 kHz +/- 1.5 kHz
Operating Temperature Range
-4° to +130° F (-20° to +54° C)
Headset
Industrial Grade/600-Ohm Impedance
21-24 dB External Noise Attenuation
Warranty
Over or Behind-the-Head (for use with hard hat)
5-year parts & labor on all manufacturer's defects
No calibration required
Requalification of performance (once per year)

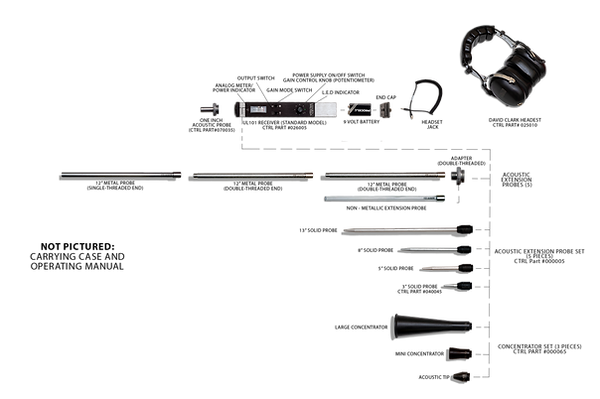

UL101 Condition-Based Monitoring Kit (000031 / 000033)
APPLICATIONS
leak detection | pressure leaks | motors | cylinders | bearings | electrical arcing | seals | non-pressurized vessels | substations | mechanical equipment | transformers | vacuum leaks | valves | hatches | gears | electrical panels | window gaskets | solenoids
TROUBLESHOOTING
The CTRL UL101 CBM Kit converts ultrasound signals produced by industrial machinery and vehicles into easily recognizable audible sounds so the user can evaluate the condition of individual components, even in extremely noisy
plant environments. The CTRL UL101 is used worldwide for predictive maintenance, quality control, and for leak detection.
Kit Components | CTRL Part # | DLA Part # | NSN |
|---|---|---|---|
UL101 Receiver (Standard) | 026005 | 10015 | 6635 01 270 6829 |
UT2000 Universal Transmitter (Standard Model) | 026010 | 20108 | 6625 01 270 6828 |
UL101 Receiver (Intrinsically Safe) | 026007 | 6635 01 578 7933 | |
UT2000 Universal Transmitter (Intrinsically Safe
Model) | 026012 | 5480 01 658 4493 | |
Headset (Over-the-Head) | 025020 | 30101 | 5965 01 270 6832 |
Headset (Behind-the-Head) | 025015 | ||
Carrying Case | 020019 | 30100 | 6625 01 270 6830 |
1-inch Acoustic Probe | 070035 | 6635 01 579 6899 | |
Acoustic Extension Probe Set (5 Pieces) | 000005 | 10114 | 5355 01 270 6833 |
Solid Probe Set (4 Pieces) | 000050 | 6625 01 658 6145 | |
Concentrator Set (3 Pieces) | 000065 | 6635 01 579 6932 | |
Operator’s Manual | 005010 |
UL101 Basic Kit (000036 / 000038)
APPLICATIONS
leak detection | valves | pressure leaks | vacuum leaks | electrical arcing | transformers | gas leaks | hvac leaks | steam traps | compressed air leaks for energy savings
LEAK DETECTION
The CTRL UL101 Basic Kit includes attachments for airborne ultrasound applications including leak detection (any type of gas), vacuum leak detection, electrical inspection, and steam leak detection. Additionally, the kit includes a single 3-inch solid probe for diagnosing steam traps and valves by detecting internal bypass leaks
Kit Components | CTRL Part # | DLA Part # | NSN |
|---|---|---|---|
UL101 Receiver (Standard Model) | 026005 | 10015 | 6635 01 270 6829 |
UL101 Receiver (Intrinsically Safe Model) | 026007 | 6635 01 578 7933 | |
Headset (Behind-the-Head) | 025015 | ||
Headset (Over-the-Head) | 025020 | 30101 | 5965 01 270 6832 |
Carrying Case | 020019 | 30100 | 6625 01 270 6830 |
1-inch Acoustic Probe | 070035 | 6635 01 579 6899 | |
Acoustic Extension Probe Set (5 Pieces) | 000005 | 10114 | 5355 01 270 6833 |
3-inch Solid Probe | 040045 | 6635 01 579 6901 | |
Concentrator Set (3 Pieces) | 000065 | 6635 01 579 6932 | |
Operator’s Manual | 005010 |
UL101 Electrical Inspector Kit (000045)
APPLICATIONS
corona discharge | electrical panels | electrical tracking | transformers | partial discharge | electrical arcing | substations
ELECTRICAL INSPECTION
The CTRL UL101 Electrical Inspector includes the UL101, PowerBeam 300, and additional accessories to allow for a
full inspection of electrical equipment. The inclusion of the concentrator set and polycarbonate extension probe makes the
inspection of dangerous electrical panels possible and safe.
Kit Components | CTRL Part # | DLA Part # | NSN |
|---|---|---|---|
UL101 Receiver (Standard) | 26005 | 10015 | 6635 01 270 6829 |
Headset (Behind-the-Head) | 25015 | ||
Carrying Case | 20030 | ||
12" Acoustic Probe, Polycarbonate | 70040 | ||
Concentrator Set (3 Pieces) | 000065 | 6635 01 579 6932 | |
Operator’s Manual | 5010 |
