Save Time & Slash Energy Costs Using Ultrasound

p/n 000038 UL101 Leak Detector Kit, Instrinsically Safe UL101 Receiver with Large Concentrator Attachment Shown

p/n 000038 UL101 Leak Detector Kit, Instrinsically Safe
UL101 Receiver with Large Concentrator Attachment Shown



The UL101 is a leak detector that maximizes the properties of ultrasound to find all turbulent flow leaks.

  • Detects Leaks Up To 150 Feet (50 m)

  • Pinpoints To Exact Location

  • More Sensitive Than Any Other Ultrasonic Leak Detector

  • Best Signal-To-Noise Ratio

  • Easy To Use

p/n 000036 UL101 Leak Detector Kit, Standard UL101 Receiver Shown

p/n 000036 UL101 Leak Detector Kit, Standard
UL101 Receiver Shown


How The CTRL UL101 Leak Detector Works

Using ultrasound detectors for leak detection is a growing industry standard. Ultrasonic leak detection is recommended by many, such as the U.S. Department of Energy, as the best method for detecting the location of leaks in order to minimize energy waste and improve plant efficiency.

The CTRL UL101 Ultrasound Detector converts the ultrasound (40 kHz +/- 1 kHz) down into the audible range and outputs to a headset. All other frequencies are filtered, so that even the smallest air/gas, vacuum, or refrigerant leak can be detected and pinpointed in a noisy plant environment.

Detect & Convert Ultrasound Into Human Audible Range of Hearing

Detect & Convert Ultrasound Into Human Audible Range of Hearing

Leak Detection Benefits

Other devices require you to be within 1 to 2 feet, to adjust the frequency, to only use for a particular type of gas, etc. The design of the UL101 is "keep it simple." CTRL has designed an easy to use device that is more sensitive than any other and fits in the palm of your hands.

Easily find leaks in a noisy environment. Ultrasound is very directional. Detect leaks from as much as 150 feet in some cases, depending upon the intensity of the leak. Pinpoint the leak to the exact location in seconds.

Energy Savings
Reduce your compressor usage by 20% - 30%.

HVAC
Ultrasound is not affected by wind.

Expensive Gas (Any Type)
Finding one Nitrogen leak has immediate ROI.

Steam Leaks / Steam Traps
Improve steam system efficiency and save money.

Intrinsically Safe:

ANSI /UL 91 3-88, for DIVISION 1, CLASS I, Groups A, B, C and D, CLASS II , Groups E, F, G and CLASS III
It also complies with DIVISION 2, CLASS I, Groups A, B, C and D, CLASS II, Groups F, G, and CLASS III


Start Saving Time & Money Now!

Name *
Name


UL101 SPECIFICATIONS

Distance of Reception – up to 150 ft (50 m)
without PowerBeam 300 attachment
Threshold of Sensitivity – 0 dB SPL
Resonance Frequency – 40 kHz +/- 1 kHz
Operating Temperature –  -4° to +130° F
(-20° to +54° C)
Power Supply – standard 9 Volt battery
Battery Life – 45 continuous hours





GSA Contract #: GS-06F-0001 N
CTRL Cage Code: 62373

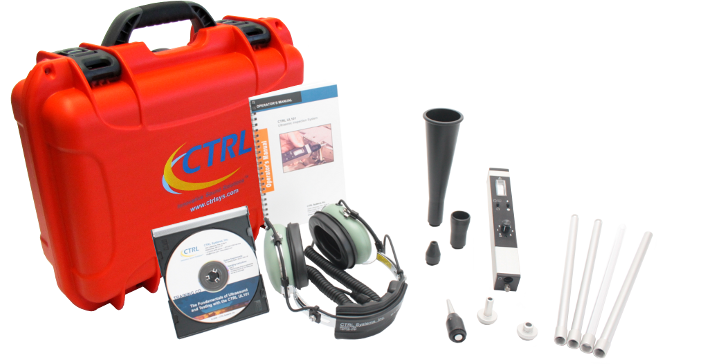

UL101 Leak Detector Kit



Still not sure how ultrasound works?

Check out the CTRL Leak Detector App for Android from the Google Play Store
